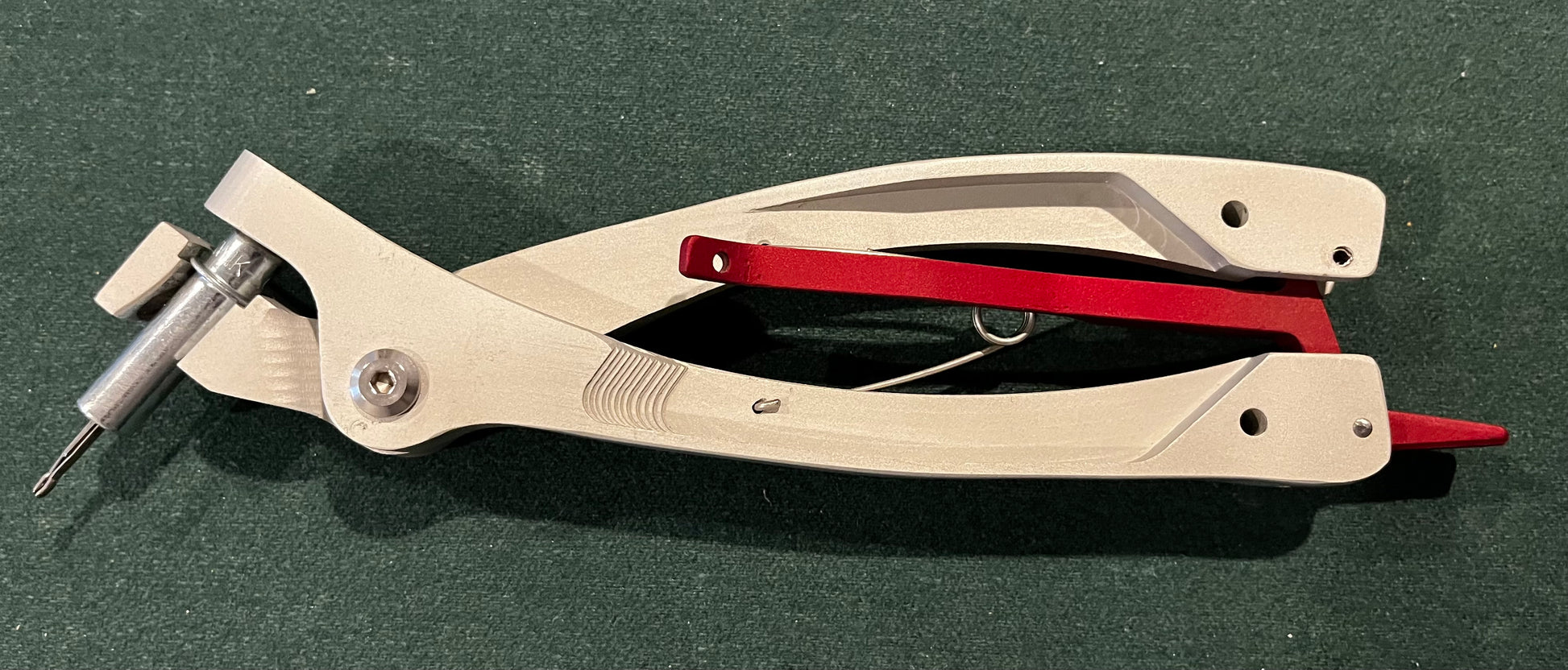

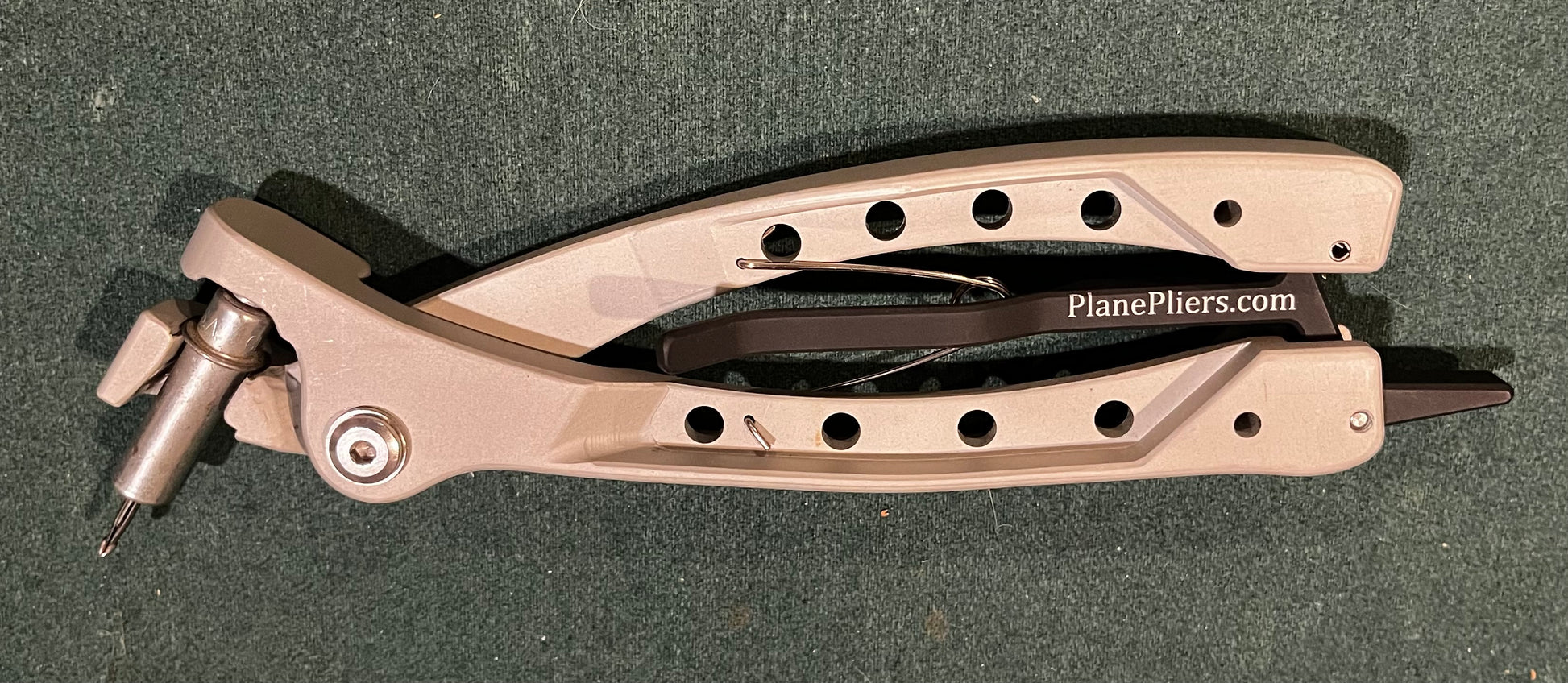

Latching Pliers

PlanePliers* – Latching Pliers for Temporary Fasteners (Clecos)

*Patent Pending

Specifications Sheet

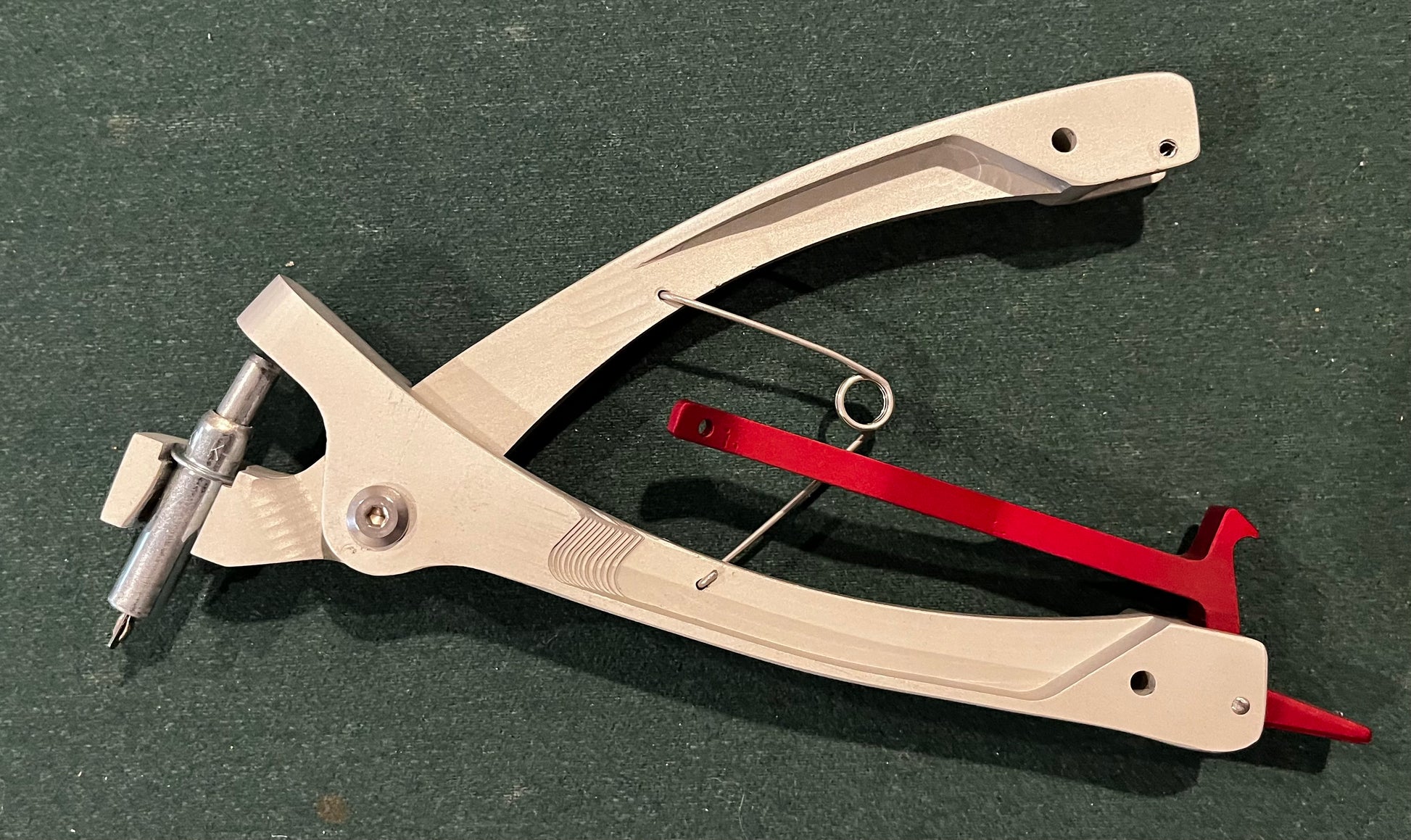

Materials:        Upper, Lower Handles and Rear Latch – 6061 T6 Aluminum - Anodized

                         Torsion Spring – Stainless Steel

                         Latch spring – Galvanized Zinc Plated Steel Wire

                         Magnets – Rare Earth Neodymium Magnets

                         Bearings – Chrome Steel

All other hardware – 304 or 316 Stainless Steel

Bolt Hardware - Secured with Loctite Thread Locker Red 271 – High Strength

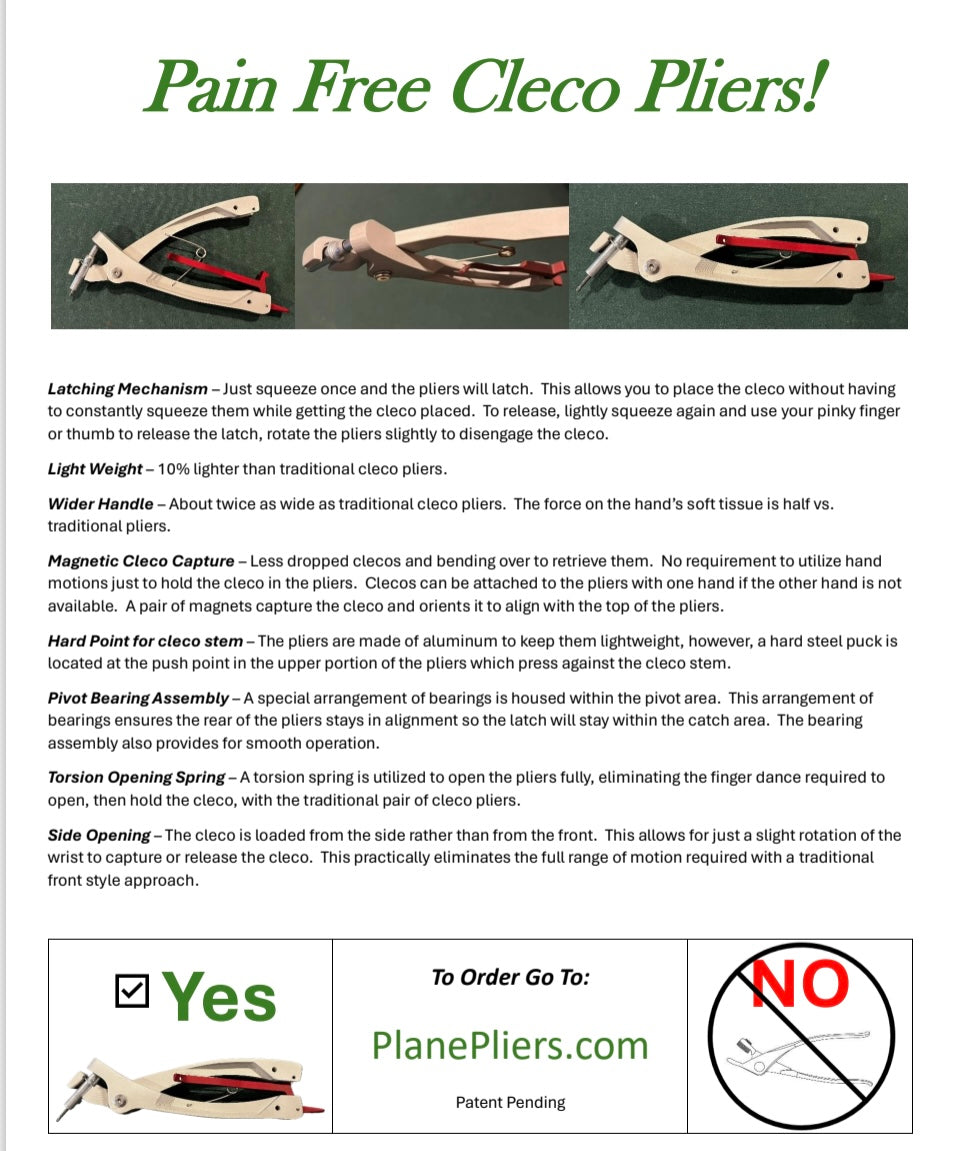

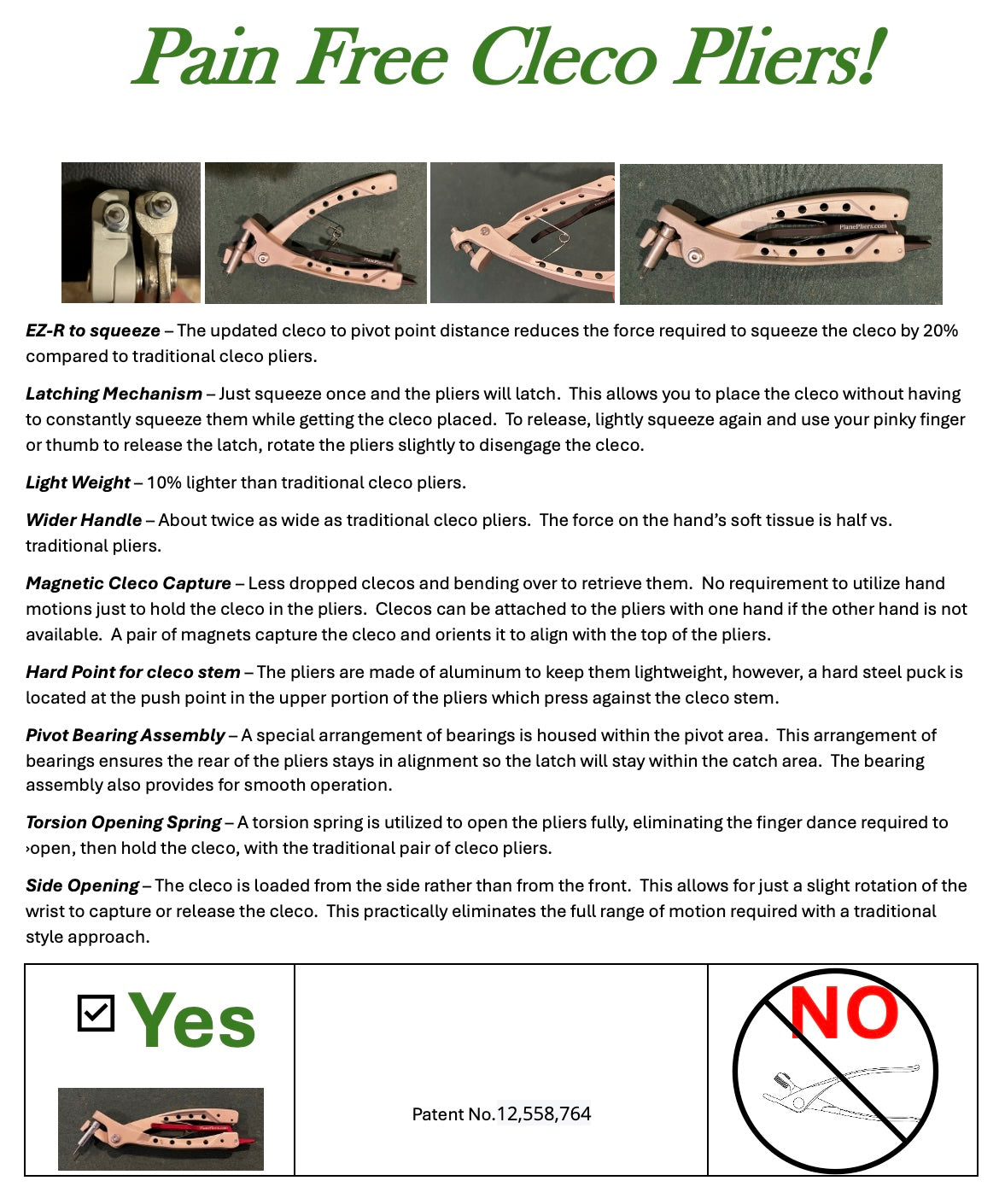

Features

Light Weight – 10% lighter than traditional cleco pliers.

Wider Handle – About twice as wide as traditional cleco pliers.  The force on the hand’s soft tissue is about half that of the traditional pliers.

Magnetic Cleco Capture – Less dropped clecos, bending over to retrieve, etc.  No requirement to utilize hand motions just to hold the cleco in pliers.  Clecos can be attached to the pliers with one hand if the other hand is not available.  The pair of magnets capture the cleco and orient it to align with the top of the pliers.

Hard Point for cleco stem – The pliers are made of aluminum; however, a hard steel puck is located at the push point in the upper portion of the pliers which press against the cleco stem.

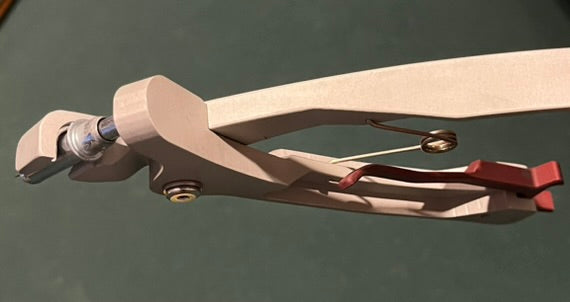

Pivot Bearing Assembly – A special arrangement of bearings is housed within the pivot area.  This arrangement of bearings ensures the rear of the pliers stay in alignment so the latch will stay within the catch area.  The bearing assembly also provides for smooth operation.

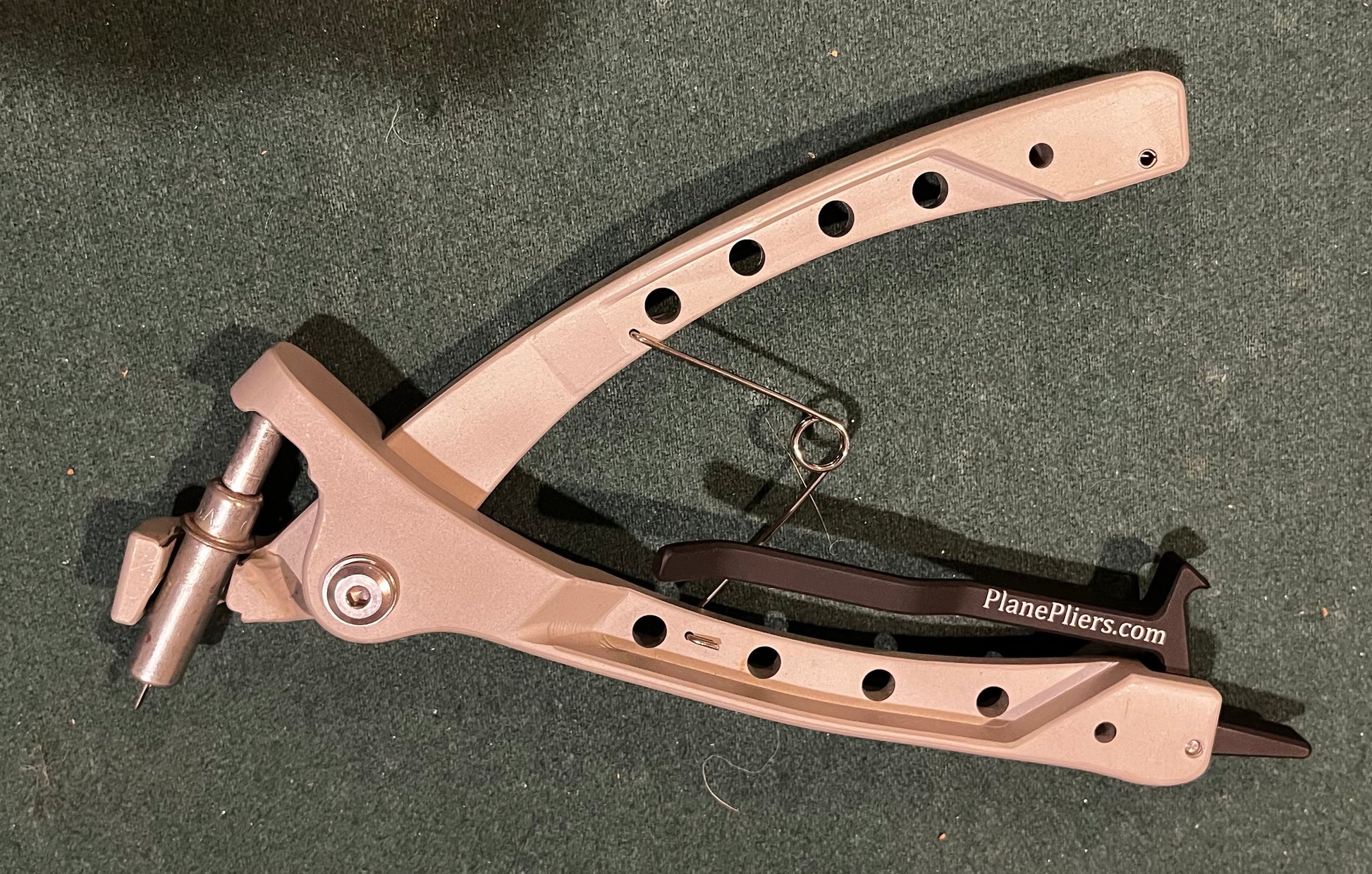

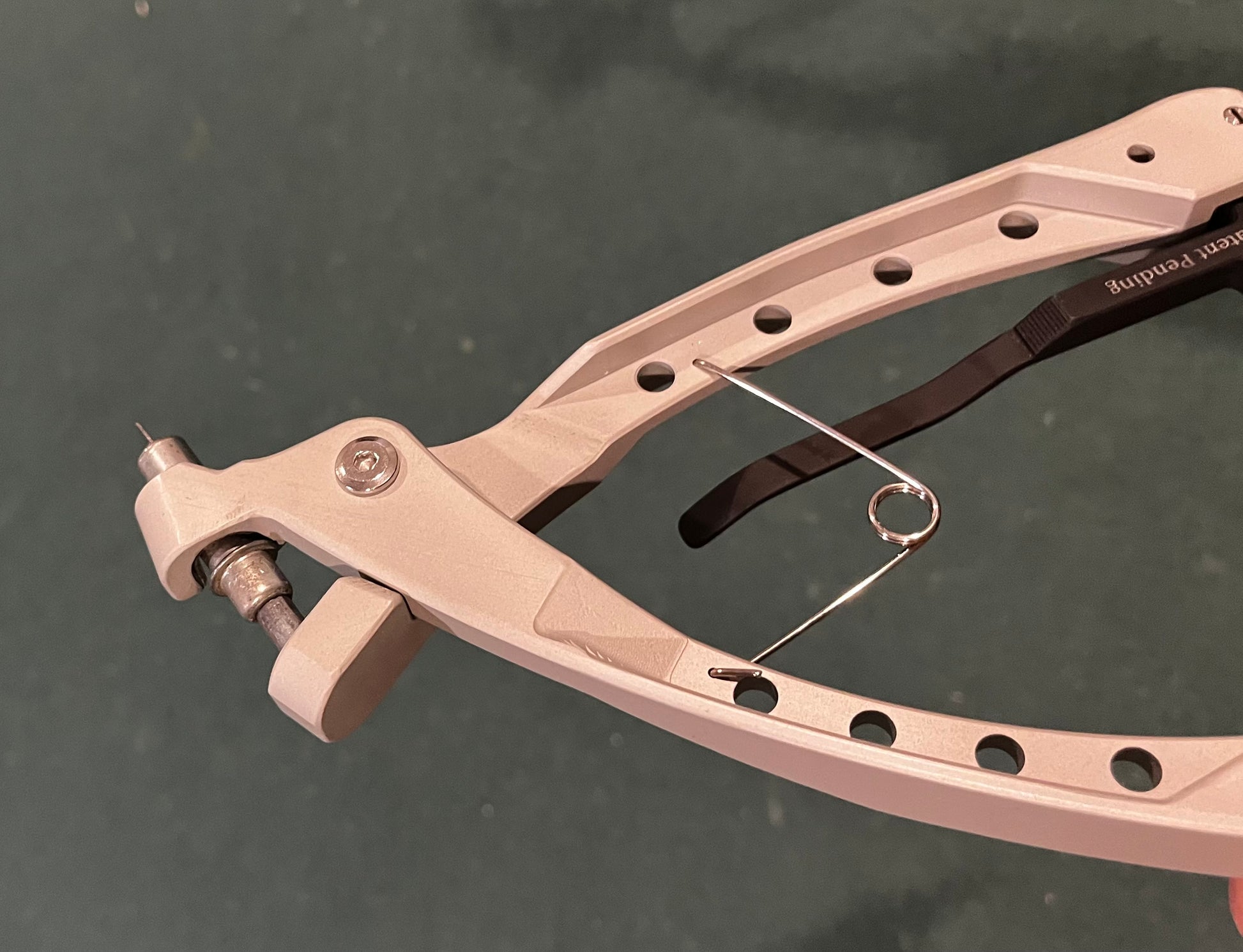

Torsion Opening Spring – A torsion spring is utilized to open the pliers fully, eliminating the finger dance required to open, then hold the cleco, with the traditional pair of cleco pliers.

Side Opening – The approach to the cleco is from the side rather than from the front.  This allows for just a slight rotation of the wrist to capture or release the cleco.  This practically eliminates the full range of motion required with a front / traditional style of cleco pliers.

Product Warranty: Pliers warrantied for 10 years against defects in materials and workmanship. Pliers can be returned for replacement / repair during the warranty period.

WARNING and DISCLAIMER:

Anyone purchasing or using our products is personally responsible for correct and safe use. The information provided in any accompanying documents, YouTube Videos, other materials provided, and any information, tips, or advice given or implied by PlanePliers LLC staff is solely for the purpose of making purchasing decisions and is not a substitute for proper instruction or common sense.

By Purchasing products from PlainPliers LLC, the customer acknowledges the potential risks involved with the use of these products and further agrees to hold harmless, indemnify, protect and defend PlainPliers LLC against any incident or action involving the products purchased from PlainPliers LLC.
